Materials: Lilliberg 3 person sofa
Description: I bought a Lilliberg 3 seater sofa frame by itself because it was on sale. I had an old metal futon that was falling apart so I used the hinges on the futon to turn the Lilliberg sofa into a Lilliberg futon.
First I shortened the legs by a few inches because I like lower furniture but also the futon hinges would add a few inches to the height of the sofa.
The futon back and bottom needed a wooden frame to be attached to the hinges. I cut four pieces of 2x3 and attached them to the hinge using various L brackets I had laying around. Then, with the frame extended, I drilled holes to attach the hinges to the futon frame so that the 2x3 supports would lie flat on the lengthwise beams.
I also added 1x3s lengthwise to support the middle of the futon. These were attached with small brackets to the 2x3 supports. The Lilliberg back and bottom come attached with several small metal hinges so I removed those so that each piece was independent and could be screwed to the wooden frame of 2x3 and 1x3s.

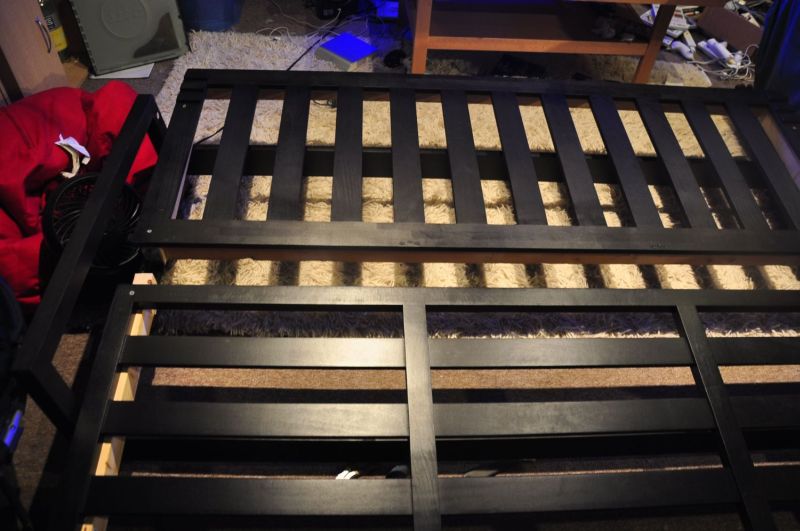

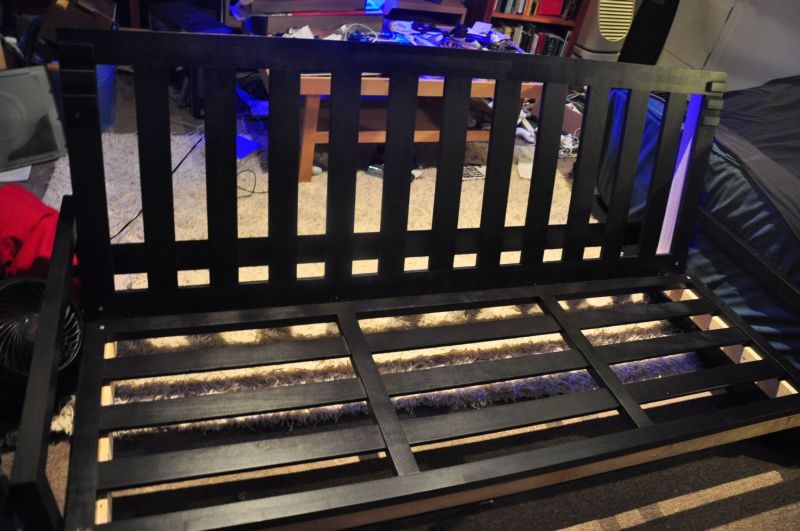

The futon folds up very easily and is nice and solid because of the additional wooden frame. Lowering the Lilliberg by cutting off a few inches made the sofa the right size because I added extra padding. I topped it with two regular futon mattresses which were a bit longer than the Lilliberg but I could get it in there by scrunching the mattress.
See more of Bobby's Lilliberg futon.
~ Bobby, MA
